How to get gorgeous looking fonts on ubuntu linux

119 Flares Filament.io 119 Flares ×

Fonts on Linux

Fonts on linux have long been an issue due to various reasons like the BCI patent by Apple, lack of free quality fonts etc. However over time things have changed and now its possible to get your linux system fonts look as good as, or even better than a mac or windows 8 as far as fonts are concerned. In this post I am going to show you couple of simple tricks that can make the fonts of your linux system look amazing!!







However first there are a couple of things to know about how the tricks work. We are mainly going to do 2 things. First is, get better fonts for the system. Second, we are going to tweak the ".fonts.conf" file in the home directory. The ".fonts.conf" file allows a user to override the system font settings like antialiasing, hinting, auto-hinting, sub pixel rendering etc.

The tweaks shown in the post should give identical font rendering on any linux distro provided that BCI hinting (Byte code interpreter) is available (which it is on most modern linux distros since the bci patent has now expired).

Step 1 - Get better fonts

Ok, so the first step is to get better fonts for our system. All of these fonts are free and available from the google webfont store at the following url

http://www.google.com/fonts/

Here is a list of the fonts you shall need.

1. Droid Sans
2. Droid Sans Mono
3. Droid Serif

4. Noto Sans
5. Noto Serif

6. Open Sans

Download the font files. Google would give all of them in a single zip file. Make sure you download all styles and all encodings.

Once downloaded, extract them in the following directory.

/usr/share/fonts

And they would get installed.

Step 2 - Tweak your .fonts.conf

The next step is to tweak the font rendering through the .fonts.conf file. This file exists in your home directory. In newer versions of ubuntu, if this file is not already there, then create one. The file is in xml format, and through its syntax we can define various settings on per font basis. Like replace a font by another, use autohinting for a certain font, don't use for another and so on.

So copy the xml from the following url to your .fonts.conf file

https://gist.github.com/silv3rm00n/5599072

If you already have a fonts.conf file then take a backup first. Later if you decide to revert,

Make sure you installed the fonts mentioned in the previous step. After this you need to configure few font settings in kde/gnome, firefox and google chrome. Move on to the next section or continue reading to know more about the fonts.conf tweaks.







Some background

The ubuntu wiki page on fonts has a font configuration xml provided by Obi Bok. It focuses on getting windows xp style clear looking fonts on your linux system with microsoft fonts. For this you need to install the microsoft fonts like Arial, Verdana, Tahoma, Georgia, Times New Roman etc.

On Ubuntu the fonts are available in the repository by the package name ttf-mscorefonts-installer. By installing those fonts, and putting the xml setting in your fonts.conf file your fonts should look like that of windows xp. Infact they would look better than windows XP.

Those microsoft fonts might work well for you, but I think they are out dated and its time to get some modern fonts.
So I modified the original fonts.conf by Obi Bok to suit more to Droid, Noto and Open Sans font families. You will see the results in a short while.

Step 3 - Configure font settings

Now we shall be configuring the desktop (KDE or GNOME) and the web (Firefox or Chrome) to get better font renderings according to our plan.

Configure system fonts - KDE

On KDE, launch System Settings, go to "Common Appearance and Behaviour > Application appearance > Fonts".
Select "Droid Sans" size 9 for all fonts. For "fixed width" font select "Droid Sans Mono" size 9.

kde_font_settings

In "Use anti-aliasing" dropdown, select "System Settings". Leave force font dpi unchecked.

On KDE the subpixel rendering cannot be enabled from the .fonts.conf file. Adding the following will have no effect

Hence it has to enabled from the Font settings box.

kde_anti_alias

The subpixel rendering setting for kde is stored in the file "~/.kde/share/config/kdeglobals" in a field named "XftSubPixel=rgb".

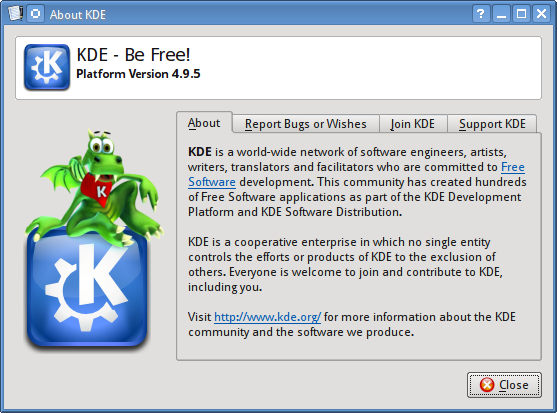

Thats it. That should make your fonts look better. Try logging out and relogin, if the settings don't take effect properly.

kde_fonts

Gnome

The newer gnome desktops dont have a direct option to change the fonts. Use a tool like gnome-tweak-tool and change the fonts.

Gnome with the default Ubuntu Font at size 11pt.

gnome_ubuntu

Gnome with tweaked Droid Fonts at size 10pt.

gnome_droid

Configure web fonts - Chrome/Firefox

Now open the browsers google chrome and firefox and go to font settings area. And use the following settings

Standard Font - Sans
Serif Font - Serif
Sans-serif font - Sans
Fixed-width font - monospace

Minimum font-size - 11px

Chrome

chrome_font_settings

Firefox

firefox_font_settings

That much is enough for configuring the browsers.

Final Results

The dialog boxes shown above already show the final rendering of the fonts on the desktop. Now I am putting up some screenshots of how the fonts look on webpages.

Here is quick comparison between our font tweaked google chrome on linux and Google chrome with default fonts on windows 8.

Ubuntu default - Chrome

On a fresh installation of Ubuntu 12.10, google chrome shows google.com like this

ubuntu_chrome_default

Ubuntu TWEAKED - Chrome

Here is the same result with our font tweaks applied. The fonts look rich and well fed.

chrome_web_fonts

Windows 8 - Chrome

And for some comparison take a look at how Windows 8 looks

windows_8_chrome

It should be easy to spot out right away how rich the fonts on ubuntu look, when compared to windows 8. I have not checked with mac. May be you should try that and let me know the results.

Monospace

For monospace we have 2 great choices. Droid Sans Mono and Inconsolata. However each has got issues.

1. Droid Sans Mono does not have a Bold version. So making them bold looks ugly on webpages. Inconsolata has got a bold version.

2. Inconsolata is smaller in size than Droid Sans Mono. So at the same size of 9pt or 12px Inconsolata looks much tinier than Droid Sans.

3. Comparatively Droid Mono is clearer than Inconsolata.

Here is a screenshot of how each looks on KDE with full hinting.

Droid Mono at 9pt

droid_mono

Inconsolata at 10pt

inconsolata

So Inconsolata at 10pt looks like Droid Mono at 9pt. Also note that Droid Mono looks nicer than Inconsolata.
Both are at full hinting with autohinting disabled.

Droid Mono vs Ubuntu Mono

Droid Mono at 9.5pt in Konsole/KDE with full hinting

konsole_droid_95

Ubuntu Mono at 11pt in Konsole/KDE with slight hinting

konsole_ubuntu_11

What tweaks have been done

Now I shall explain the tweaks done to your font settings.

1. Arial, Tahoma, Verdana has been replaced by 'Noto Sans'. This will affect the webpages.

Those 3 fonts are used a lot on websites, because most websites are still living in the old age. So we replace them with Noto Sans, a modern and beautiful looking font from Google.

2. Georgia, Times New Roman replaced by Noto Serif. This will also affect the webpages.
Same reason as before, Noto Serif looks very good.

3. Droid Sans is made the default sans and sans-serif font. This is used on desktop and also on webpages as fallbacks.
4. Droid Serif is made the default serif font.

5. Droid Sans Mono is the default monospace font. This will be seen in the terminals and code editors.

Different fonts for desktop and web

It is important to note that we are using the Droid fonts for the desktop and the Noto fonts for the web (through replacement trick). We could have used the same droid fonts on the web too but it would not work very well for a couple of reasons.

1. To make Droid fonts look the best on the desktop we use bci hinting (by disabling autohinting). Due to this the fonts look very good, but there is a tradeoff. At size 12px ( which is very common on websites ) the font look tiny. Using such a tiny font on a webpage hinders readability.

2. With auto hinter, the size would go up but rendering quality is hampered on the desktop.

3. On web pages Noto Sans with autohinter looks more clear compared to bci hinter, but slightly stretched compared to bci.

So to get the best looks on both the desktop and the web, I came up with the solution of using Droid on the desktop with BCI hinting, and Noto on the web with autohinter.

So do these tweaks matter

The tweaks shown above were tested on LCD monitor at 96 dpi (not sure if that was the actual dpi of the monitor).
On laptops fonts perform better, so even if you were to use a less nicer or a little bad looking font, it would look good on laptops/pads where the pixel density is higher.

Moreover if you are using gnome, then your fonts are by default 11pt which is bigger than the 9pt/10pt examples shown above. At big sizes fonts again perform better. Thats the reason the Ubuntu fonts look good enough on gnome. At smaller sizes the performance or the clarity becomes more testable.

That was the desktop part. On webpages fonts come in various sizes and 12px and 13px are the most common. So this is the place that needs most of the beautification. So even if you are content with the gnome desktop with ubuntu font, the web fonts are surely not very upto the mark, as already shown above.

So try out the tweaks and suggest me further improvements. I hope to continue developing the .fonts.conf file to tweak and tweak more the font settings to achieve don't know what. Have fun till then!!

Additional Notes

Google Chrome is buggy when it comes to following the rules mentioned in the .fonts.conf file. It does not obey the pixelsize rules. This does not matter unless you want to tweak the fonts.conf file yourself. Firefox follows the rules very well.

In browsers, the fonts.conf hinting rules might not be followed if the actual fonts are not available on the system but present on the webpage through css3. In that case the default hinting rules would be followed.

On chrome, if the fonts are present on the system then fonts.conf rules shall be applied.

On firefox if fonts are loaded via css3 then the fonts.conf rules shall not be applied and default antialiasing will be applied always. However if the same fonts are not loading by css3, then the fonts.conf rules shall be applied.

References

This is a very old and probably the first article that ever came up talking about font issues on linux and how to get windows like fonts on various linux distros.
http://avi.alkalay.net/linux/docs/font-howto/Font.html

This is an excellent article that explains various fonts.conf settings like antialiasing, bci hinting, auto hinting. Its a must read.
https://wiki.archlinux.org/index.php/Font_Configuration

The syntax of the .fonts.conf file is explained here
http://linux.die.net/man/5/fonts-conf

The original xml on which my tweaks are based can be found here
https://wiki.ubuntu.com/Fonts

Last Updated On : 8th January 2014

Subscribe to get updates delivered to your inbox

About Silver Moon

Php developer, blogger and Linux enthusiast. He can be reached at m00n.silv3r@gmail.com. Or find him on Google+

  • Pr3fix

    I did all these tweaks on ElementaryOS and now my login screen (Pantheon Greeter) has white boxes where characters should be… After login the fonts appear fine, however. Anyone know how I can fix this?

  • Ghaith B

    Thanks for this post! great fonts but I have a problem with chromium; if Im using Open Sans or Noto Sans; the URL bar’s text becomes jumpy; as if It doesnt’ fit, any similar behavior?

  • Alexey Morozov

    I wonder how you did manage to get subpixel font rendering in Plasma applets and panels, In most places (e.g in the panel clocks and in the K-menu I have grayscale rendering despite the system settings and font rendering in applications.

  • Matt Hoover

    Thanks for the excellent guide. I am happy with is for the most part, with a few very small exceptions. One that irks me a lot is that exclamation marks are nearly undistinguishable from lowercase L’s. Any ideas how to improve that?

  • augustus wong

    what about lato pt mono pt sans pt serif on google web fonts

  • Falopius

    Absolutely awesome, the only thing that didn’t fell good for me on Ubuntu was the lack of good sharp looking fonts on my desktop. This worked like a charm

  • Lance

    Thanks, This worked well with slight tweeks for Linux Minut 15 Cinnamon and looks great. I also applied the Firefox settings to Thunderbird and vastly improved readability of email imo.

    Cinnamon Fonts — Menu -> System Tools -> System Settings -> Fonts
    Default Font – Droid Sans 9
    Document Font – Droid Sans 9
    Monospace Font – Droid Sans Mono 9
    Window Title Font – Droid Sans 9

    Hinting: Slight

  • Allan Nienhuis

    I was getting a number of errors/warnings in the console when launching binaries in ubuntu 13.04 using the config file linked in the gist above:

    Having multiple values in isn’t supported and may not work as expected

    I simply (and naively) duplicated the test condition for each of the child entries. This seemed to avoid the error messages and the fonts seems to still render nicely so I don’t _think_ I broke anything. But as mentioned this was a really naive change so your mileage may vary. gist here: https://gist.github.com/allannienhuis/6656339

  • http://david.latapie.name/ David Latapie

    You might appreciate my article about your work: http://david.latapie.name/blog/better-than-infinality-gorgeous/

    • zamiere

      It’s not better. It’s totally different. See the screenshots on your blog, on the right side “Images” “I” has a serif, the left side is sans serif. Replacing or substituting typefaces is NOT better than correctly rendering, as Infinality does. I recommend Infinality over this method. Much better. Really.

  • doa

    Is there a way to make the typefaces appear more bolder/heavier?

  • Olivier Dony

    With the latest fontconfig version your fonts.conf file generates lots of warnings: “Having multiple values in isn’t supported and may not work as expected”. I forked your gist to fix them in what seems to be the expected way Thought you might want to have a look and update yours. https://gist.github.com/odony/6173112

  • NoonianAtall

    Looks like you turned up hinting–or that file you linked to without explaining does–which is only subjectively better. Many people think it makes text look worse (e.g. OS X doesn’t use it). I can’t stand single-pixel-wide fonts, and that’s what hinting forces at smaller sizes. Basically, I think your “before” shots look better than your “after” ones.

  • Johannes

    Thanks, however, there is one problem I am having: With this .fonts.conf, rendering of most PDF files in Firefox’ / Iceweasel’s internal PDF viewer is very much messed up. For some reason, it displays huge, overlapping letters, making the page completely unreadable. I have already commented out some sections of the .fonts.conf, but so far to no avail. Any hint, which section might be to blame?

    • http://www.binarytides.com/ Silver Moon

      the inbuilt pdf viewer of firefox does have its own font rendering issues.
      Not sure which fonts.conf setting is messing it up. May be you can try to avoid the replacement of arial by noto sans.

      • Johannes

        I have tracked the problem down to lines 517-519 of the .fonts.conf. If I comment them out, the viewer works just fine. The lines in question go

        true

        • http://www.binarytides.com/ Silver Moon

          So you had to disable autohinting for the font ‘Book Antiqua’

          • rsking84

            Johannes,
            That fix doesn’t work on my install. Note that I’m using Oliver Dony’s forked version of fonts.conf to avoid the “multiple values” warnings. Anyway, if I disable autohinting for Book Antiqua I still have the rendering problems in Firefox. Any other ideas?

  • http://www.binarytides.com/ Silver Moon

    Thanks for the suggestion, but I wonder, aren’t most display devices like lcd monitors, laptops and pads using “left-to-right” rgb based pixel display ?

  • anonBrian

    In the last couple of months I’ve replace Droid mono with Inconsolata it’s my new favorite monospace font. I use it in konsole/yakuake, and in all my text editors/IDEs. http://www.google.com/fonts/specimen/Inconsolata

    • http://www.binarytides.com/ Silver Moon

      I compared droid mono with inconsolata, and found that droid mono performs better in terms of clarity and nice-ness. However Droid Mono does not have a bold version with inconsolata has. This is a drawback for droid mono when used on webpages, where bold versions look bad with whatever hinting.

      Added screenshots of both fonts in the post.

      • http://twitter.com/futuremonkey Pope Ron Polyp II

        My primary complaint with Droid Mono is that it is relatively difficult to distinguish between “0″ and “O”.

  • torriem

    Even with standard fonts, my fonts on Linux have looked great for the last few years. I always turn on subpixel rendering and disable all hinting. That’s the closest I can get to OS X’s font rendering. Definitely the Droid fonts look superb. Though I disagree with replacing any and all serif fonts. At decent resolutions Serif fonts are easier to read than sans serif, especially for long blurbs such as news articles or books. There’s a reason Roman fonts have been in use for thousands of years! Perhaps in the future we’ll look back on this time of proliferation of sans serif fonts and see it as a brief period when we had to use sans serif fonts because we didn’t have good enough screens.

    • http://www.binarytides.com/ Silver Moon

      We are not replacing serif fonts by sans serif.

      Only the Georgia and Times New Roman fonts are replaced by Noto Serif, which is also a serif font that looks much better.

  • jon_downfromthetrees

    The screen grabs from Ubuntu look great. Are the results equivalent on systems that don’t have Ubuntu’s font rendering patches?

    • http://www.binarytides.com/ Silver Moon

      The rendering patches are not specific to ubuntu. Its the bci support in Freetype font engine.
      The BCI patents are now expired, so it is available on all major linux distros.

      So the results should be identical on all linux systems that have BCI enabled.
